Robotics and automation systems demand components with tight tolerances, concentricity and repeatability. Zhuocheng manufactures precision shafts, guide pins, bushings, gears and custom components that meet these demands — from prototype to production.
±0.005mmTight tolerance achievable
0.01mmConcentricity control
50+Swiss CNC machines
Ra 0.4μmSurface finish
Components We Manufacture
Precision Shafts
Stepped and shoulder shafts for robot joints, actuators and drive systems.
Guide Pins & Dowels
Locating pins, guide pins and positioning components for repeatable assembly.
Bushings & Sleeves
Precision bushings and sleeves for bearings, guides and pivot points.
Gears
Spur, helical and worm gears for motion transmission and drive systems.
Couplings & Adapters
Coupling components, adapters and mounting features for modular assembly.
Custom Machined Parts
Complex turn-mill parts designed for specific motion and control applications.
Why Zhuocheng for Robotics & Automation

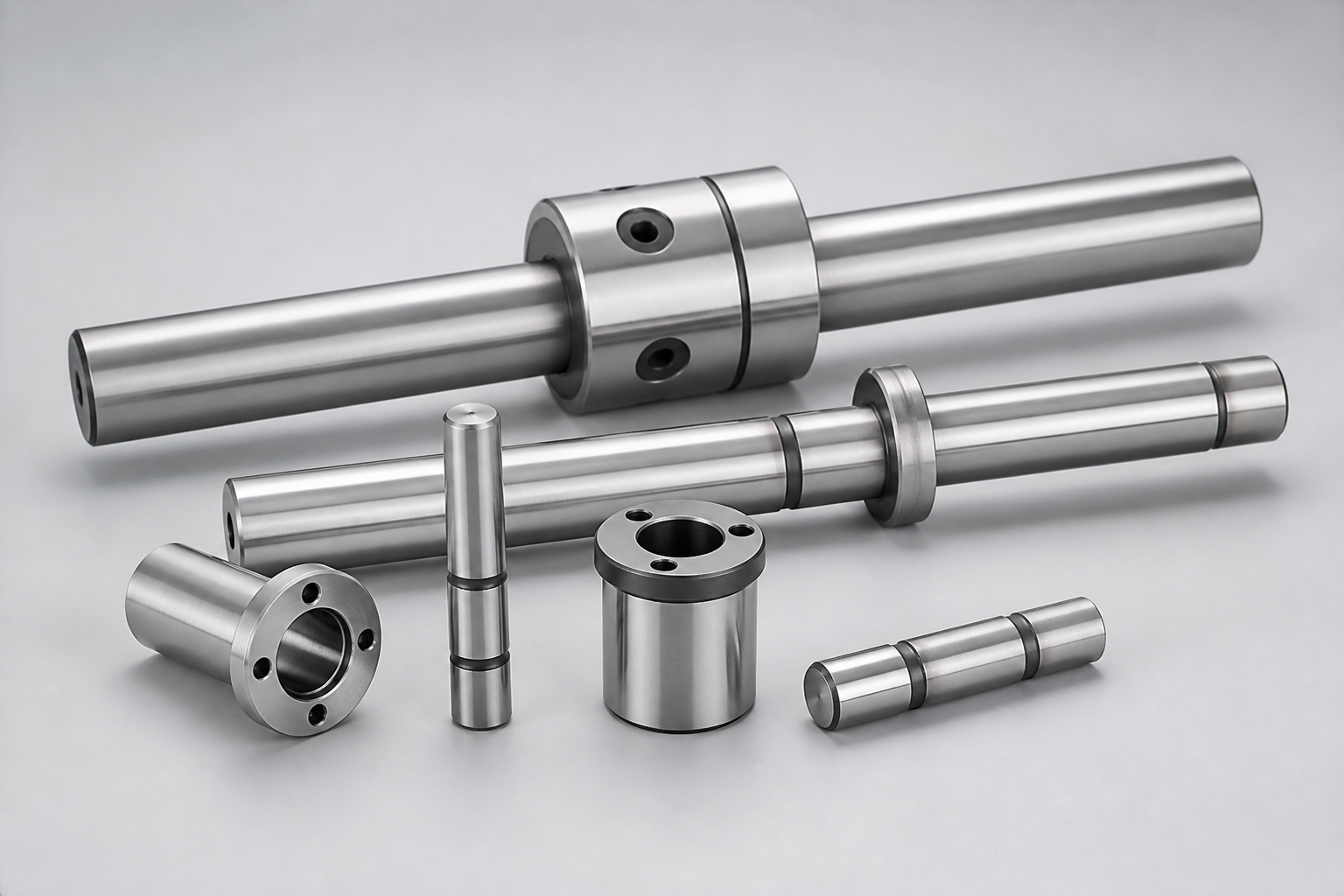

Tight Tolerance & Concentricity
Swiss CNC turning achieves ±0.005mm tolerances and 0.01mm concentricity — critical for motion system components.

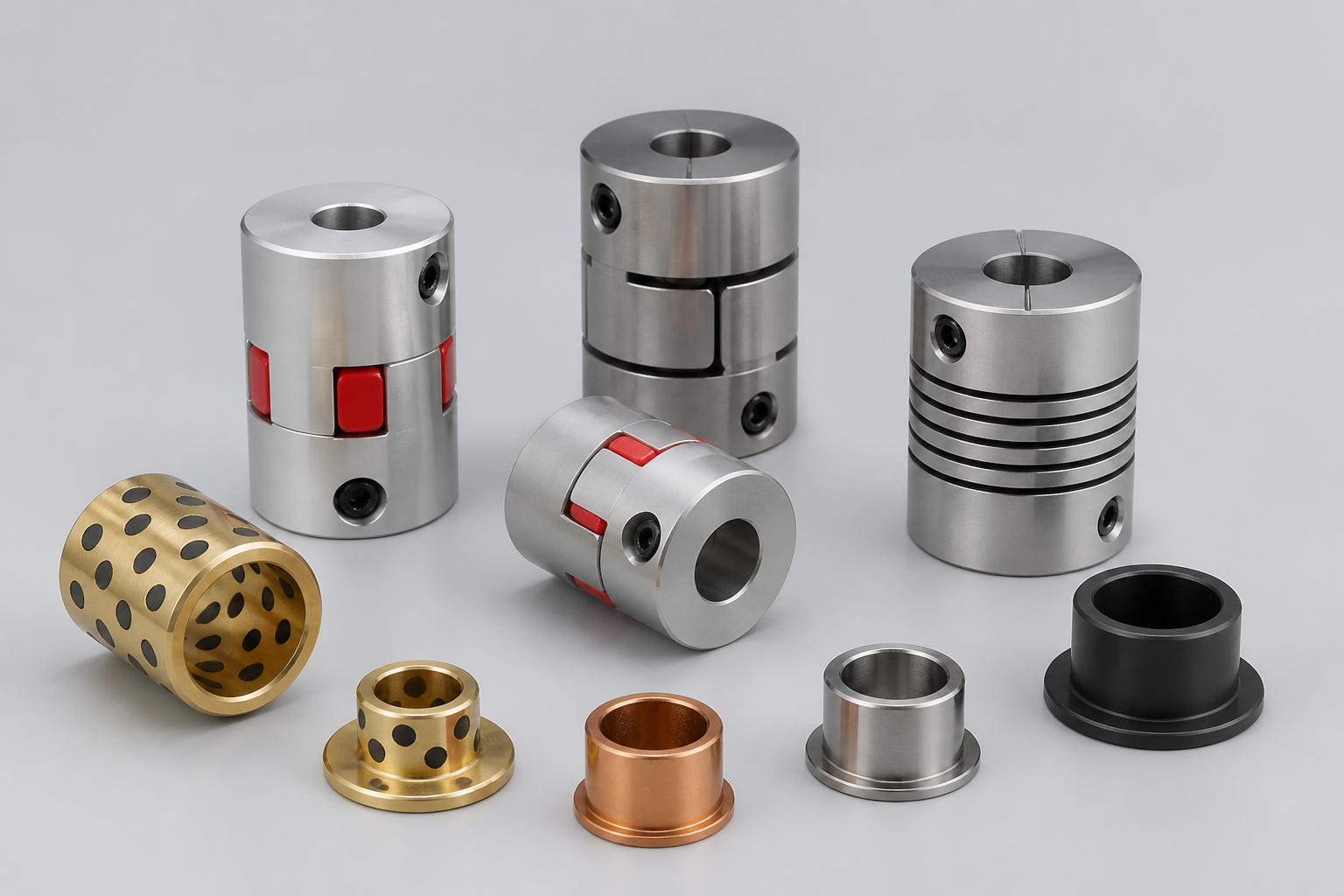

Repeatable Assembly
Consistent feature-to-feature accuracy ensures every part assembles correctly — essential for automation systems.

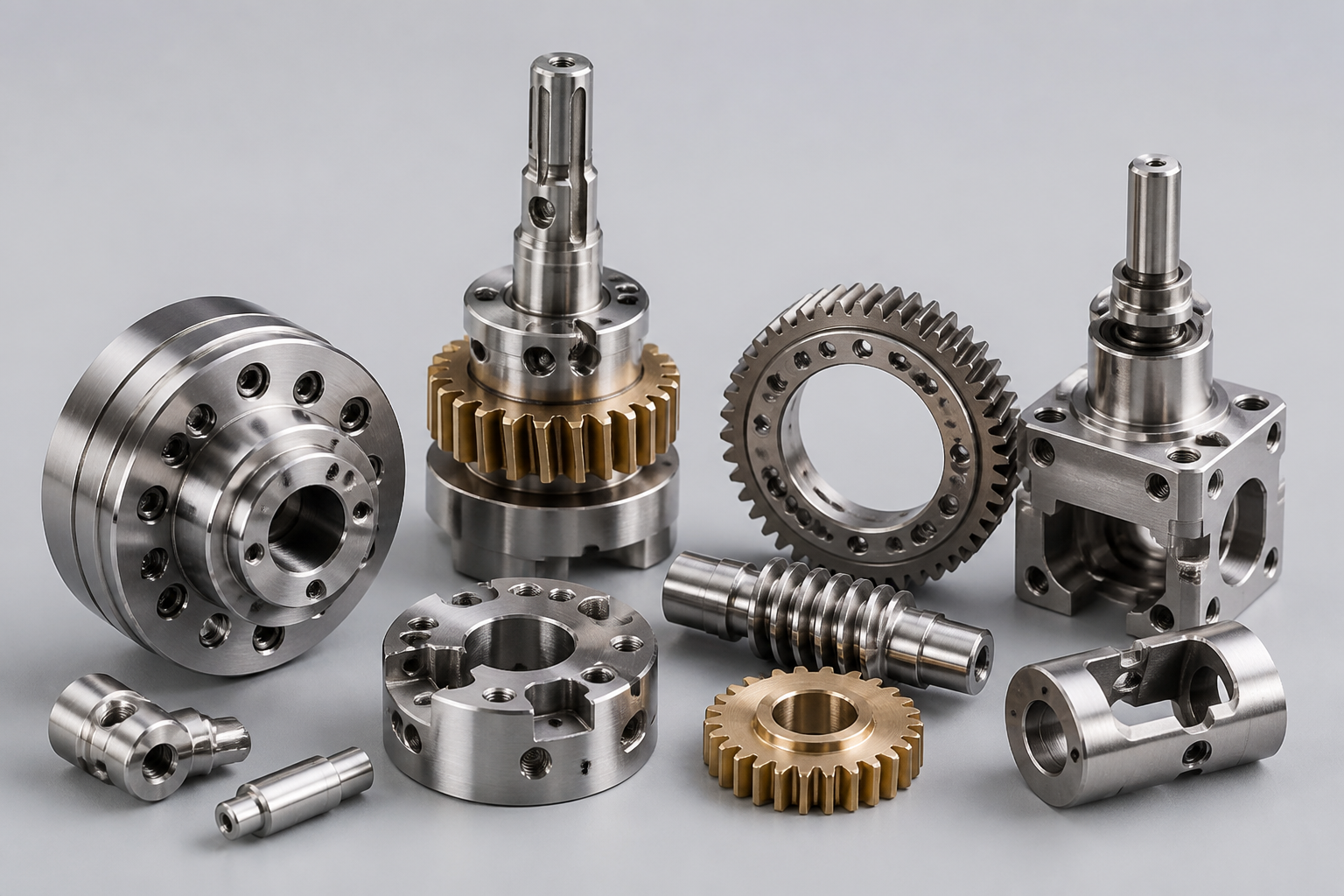

Surface Finish Control
Ra 0.4–1.6μm surface roughness for smooth movement and reduced wear in motion applications.
Common Materials
Stainless Steel 303/304/416
Aluminum 6061/7075
Carbon Steel 1045
Alloy Steel 4140
POM/Delrin
PEEK
Case Study
Robot Joint Shaft — Precision Assembly
Application
Robot arm joint assembly
Material
Stainless steel 303
Challenge
Multi-diameter shaft with 3 stepped journals, 2 threaded ends and 0.005mm concentricity requirement.
Process
Swiss CNC turning with live tooling → CMM verification of all diameters and concentricity → 100% final inspection.
Result
Consistent dimensional accuracy across prototype and production lots, smooth assembly confirmed.
FAQ
Frequently Asked Questions
What tolerances can you achieve for motion system components?
Swiss CNC turning achieves ±0.005mm tolerances and 0.01mm concentricity for multi-diameter shafts. Specific tolerance depends on geometry and material.
Can you manufacture gears for drive systems?
Yes. We manufacture spur, helical and worm gears with module 0.5–8, using CNC gear hobbing and whirling machines.
Do you support prototype development for new robot designs?
Yes. We support prototype development (1–100 pcs) with full engineering support, then scale to production as your design matures.
NEXT STEPHave a Robotics & Automation project?
Send the drawing, material, quantity and inspection requirements. Our engineering team will review the application and recommend a manufacturing route.
